System Modelling and Simulation using Simulink and Simscape

Learn about system modeling and simulation using industry-level software like Simulink and Simscape.

Book a Class, for FREE

RELATED RECENT PLACEMENTS

Jayesh Suryawanshi

Volkswagen (I) Pvt. Ltd.,

RMD Sinhgad

Mithin SanthaKumar

Timetooth Technology

Cochin University of Science and Technology University in Kochi, Kerala

Manthan Waghaye

Altigreen Propulsion Labs Pvt Ltd

Shri Sant Gajanan Maharaj College Of Engineering

Hemant Sagar

KN Associates

PM polytechnic, Delhi ncr , sonipat

Jangaiah Chikonda

LTTS

ANURAG GROUP OF INSTITUTIONS

sai dinesh

LTTS

usharama college of engineering and technology

Vadapalli A S Krishna Maruthi Srinivas

advance technologies

Jawaharlal Nehru Technological University, Kakinada

Manas Metar

Sphinix World Biz Limited

University of Wolverhampton

Syllabus

This course is full of best-in-class content by leading faculty and industry experts in the form of videos and projects

Course Overview

System modeling and simulation helps engineers design and solve real-world problems. They use software tools to design, analyze, and understand the performance of a system by modeling and simulating it virtually before it is physically modeled in the real-world. This reduces associated costs and time, and optimizes design efficiency by identifying errors early on in the process.

Simulink and Simscape are used by engineers to model and simulate systems. While Simulink is used to model, simulate, and analyze a system, Simscape is used for physical modeling. By doing this, engineers can understand how different components in a system function together.

This 6 week course will take students through the fundamentals of system modeling and simulation, as well as the basic concepts of control systems and implementing logic. In each week, students will be immersed in the use of Simulink and Simscape to model and simulate real-world systems.

This course will equip students with a conceptual understanding of system modeling and simulation, as well as the associated software skills needed to excel in the industry.

At the end of each week, students will have to complete a challenge that tests their understanding of the concepts and software skills learned.

At the end of the course, students will have to complete a project in which they will have to develop a double-acting actuator model using Simscape multibody and components.

Who can enroll in this course?

  • Final year automotive, mechanical, electrical, or electronic engineering students.
  • Engineers, tech leads, or project leads working in software companies in the automotive domain.

Course Syllabus

On a daily basis we talk to companies in the likes of Tata Elxsi and Mahindra to fine tune our curriculum.

Week 1 - Introduction to Modelling and Simulation

Modeling and simulation use models to demonstrate a system, and understand their behavior and operation with respect to time and space. Both Simulink and Simscape are heavily used in modeling and simulation as they can develop models and systems across domains.

In Week 1, students will learn about:

  • Types of Modeling
  • Difference between Simulink and Simscape Modeling
  • Simulation Phases in Dynamic Systems
  • Simscape Simulation Phases
  • Simulink and Simscape Solvers
  • Advantages of Simscape over Simulink
  • 0D, 1D, 2D, and 3D Simulations

Week 2 - FBD Analysis and Physical Modelling

Free body diagrams (FBD) illustrate the forces acting on a physical body and/or its components. By using Simulink and Simscape, the forces in a system can be modeled to understand its behavior under different conditions. Instead of representing a model with the mathematics behind it, physical modeling models and simulates systems that have physical components. Physical elements such as pumps and motors are mapped to Simscape blocks.



In Week 2, students will learn about:

  • FBD Analysis on Simulink and Simscape Models
  • Physical Networks and Simscape
  • Physical System Modeling using Simulink and Simscape
  • Solving a Two-Mass Problem using Simulink and Simscape

Week 3 - Control Design and Multi-Domain Modelling

Multi-domain modeling includes a whole model that is composed of models from different domains (For example, electrical, mechanical, and electronic domains). When multi-domain physical models are combined with control processing algorithms, errors can be identified in the initial stages of the design process.

In Week 3, students will learn about

  • PID Controllers
  • Control Design
  • Multi-Domain Modeling (Electrical and Mechanical Components) using Simscape Library Blocks

Week 4 - Multibody Modelling with Simscape

Multibody models have bodies joined together with joints and constraints. These models also have forces that define their kinematic properties to understand the response of components in the model. CAD models can be imported into the Matlab environment and integrated with CAD modules in Simscape.

In Week 4, students will learn about

  • Importing CAD Models
  • Assembling Mechanisms - Creating Multibody Model

Week 5 - Physical Modelling and Simulation

Physical modeling models and simulates systems that have physical components. Physical elements such as pumps and motors are mapped to Simscape blocks. There are many elements that can be connected to make the system. Elements from different domains can also be added to model a multidomain physical system. Through physical modeling and simulation, we can predict how different systems will behave in the real-world, identify errors, and optimize their performance.



In Week 5, students will learn about

  • Concepts of Physical Modeling
  • Mechanical Models
  • Electrical Models

Week 6 - Hydraulic and Thermal Liquid Model Simulation

Hydraulic and thermal liquid block libraries in Simscape are used to factor in their respective effects on a system. Using these blocks, students can build and model fluid systems. Once the model is prepared for analysis by adding sensors for data collection, it can be simulated to log the data.

In Week 6, students will learn about

  • Hydraulic Systems - Modeling and Simulation
  • Thermal Liquid Systems - Modeling and Simulation

Our courses have been designed by industry experts to help students achieve their dream careers

Industry Projects

Our projects are designed by experts in the industry to reflect industry standards. By working through our projects, Learners will gain a practical understanding of what they will take on at a larger-scale in the industry. In total, there are 1 Projects that are available in this program.

Double-acting Actuator Model using Simscape

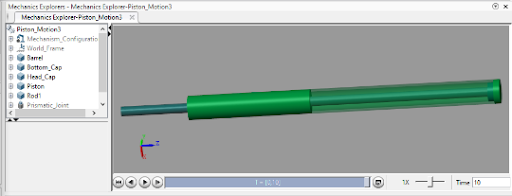

Students will have to develop a double-acting actuator model using Simscape Multibody and Components. They will have to deliver the Analysis document, Simulink/Simscape (*.slx) model, and the test results.

Our courses have been designed by industry experts to help students achieve their dream careers

Ratings & Reviews by Learners

Skill-Lync has received honest feedback from our learners around the globe.

Google Rating
4.8

Learn to Test Complex Virtual Systems with the System Modelling and Simulation using Simulink and Simscape Course



The global Simulation Software market is expanding at 13.2% of CAGR owing to its industrial applications. Hardware and software systems are involved in almost all sectors, including defence, aerospace and automobile. As many complex systems evolve with the advancement of technology, there is a need to rapidly model and validate the systems. WithSimulink and Simscape, you could perform system modelling and simulation with fewer resources and determine its feasibility.

Who Should Take This Course?

The industry-oriented system modelling course is for students and graduates of electrical engineering and related streams of engineering. If you have a knack for simulating models like actuators and pumps, this course would definitely excite you. Experienced professionals who want to upskill or are looking for a career transition to this domain can pursue the modelling and simulation course from Skill-Lync.

What will you learn?

The course will equip you with cutting-edge tools followed by top OEMs worldwide. Through the System Modelling and Simulation using Simulink and Simscape, you will get a clear understanding of:

  • 0D, 1D, 2D, and 3D Simulations.
  • Simulation and Analysis of Free Body Diagrams, which represents the forces acting on a physical component.
  • Multi-domain modelling involves both mechanical and electrical systems.
  • Importing of CAD models.
  • Modelling and simulation of hydraulic systems.

Skills You Will Gain

  • Hands-on experience in Simulink and Simscape.
  • Complete knowledge of system modelling and simulation.
  • In-depth understanding of modelling and simulation of thermal liquid and hydraulic systems.

Key Highlights of The Program

  • The System Modelling and Simulation using Simulink and Simscape is a 6-week long course.
  • Besides the course completion certificate for all participants, the top 5% of learners get a merit certificate.
  • You will get email and forum support to clear your doubts during the course.
  • Real-time industry-relevant projects will make your learning purposeful and practice-oriented.

Career Opportunities after taking the course

Upon completing the System Modelling and Simulation using Simulink and Simscape, numerous job opportunities will open up for you. Some exciting positions that you can work for include:

  •  System Simulation Engineer
  • Embedded System Simulation Engineer
  • 1D System Level Simulation Engineer

FAQs about System Modelling and Simulation using Simulink and Simscape Course

Q. Who can take up the System Modelling and Simulation using Simulink and Simscape?

Students and graduates of electrical engineering and related engineering streams can take up the System Modelling and Simulation using Simulink and Simscape course.

Q. Is the System Modelling and Simulation using Simulink and Simscape an online program?

Yes, the system modelling and simulation course is 100% online.

Q. What is the duration of the System Modelling and Simulation using Simulink and Simscape course?

The CAE online course is a 6-week course covering all the basic to advanced level concepts essential for modelling and simulation complex virtual systems.

Q. How much a Simulation Engineer can earn?

According to Ambitionbox, the average annual salary of a Simulation Engineer reaches up to INR 5.6 Lakhs per annum. However, your pay package varies with your experience and expertise.

Q. Is there any certificate for completing the System Modelling and Simulation using Simulink and Simscape course?

Yes, you shall be given a course completion certificate after completing the modelling and simulation course. The top 5% of the scorers will receive a merit certificate alongside the course completion certificate.

Q. Is there any technical support available for the system modelling course?

Yes, you can clear your doubts during coursework from our technical support team through email and forum support.

Q. What is simulation and modelling?

Modelling and simulation is the process of creating a virtual model that involves mechanical and electrical systems and testing them. This process provides space for decision-making and determining the feasibility of the system.

Q. Can you tell me more about Skill-Lync?

Skill-Lync is among India’s leading EdTech platforms dedicated to transforming engineering education. We equip young engineers with the latest skill sets and cutting-edge tools in new-age technologies.

The brainchild of two engineers from Chennai, Skill-Lync, is on a mission to bridge the skill gap between aspiring professionals and the industry’s demands through job-oriented courses.

Flexible Pricing

Talk to our career counsellors to get flexible payment options.

Premium
