Quasi 1D simulation of a Subsonic-Supersonic Nozzle

In this project, you will simulate one of the most important problems in aerospace applications- the convergent-divergent nozzle. You will solve the quasi 1D Euler's equations in Matlab to simulate and study the conditions for an isentropic flow inside a subsonic-supersonic nozzle. This project will provide insights into how a super-sonic aircraft is able to attain such speeds with the help of a simple convergent-divergent nozzle setup.

  • Mechanical Engineering and Aerospace Engineering

duration
Duration :

1 month

projectfees
Project Fees :

INR 30,000

Benefits of this Project

In this project, you will simulate one of the most important problems in aerospace applications- the convergent-divergent nozzle. You will solve the quasi 1D Euler's equations in Matlab to simulate and study the conditions for an isentropic flow inside a subsonic-supersonic nozzle. This project will provide insights into how a super-sonic aircraft is able to attain such speeds with the help of a simple convergent-divergent nozzle setup.

What will you do in this project?

Step 1 - Setting up the mesh and initial/boundary conditions

Step 2 - Solve the governing equations in both conservative and non-conservative forms using MacCormack technique

Step 3 - Study the difference between conservative and non-conservative forms

In this project, you will solve the quasi 1D Euler's equations to simulate the conditions inside a subsonic supersonic nozzle. You will derive the governing equations for an isentropic inviscid flow through a nozzle in both conservative and non-conservative forms and non-dimensionalize them. You will then solve those equations using the MacCormack's technique. You will apply the appropriate boundary conditions and adopt a time marching procedure with adaptive time step control based on Courant number to arrive a steady-state distribution of flow properties. You will then validate the numerical solution of both forms with the analytical solution and provide a contrast between their solutions through various analyses. You will also perform a grid independence test on the solution.

Similar Projects you might be interested:

Flow over a 2D Backward Facing Step

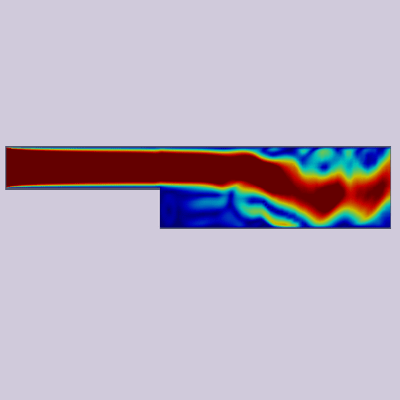

In this project, you will simulate a laminar flow over a backward facing step- one of the benchmark CFD problems. You will be solving the complete Navier-Stokes equation for a 2D laminar viscous flow in OpenFOAM. This project will help you learn how OpenFOAM works and how you can make an effective use of it to solve real-time CFD problems.
duration
Duration:

1 month

domainname
Domain :

Mechanical Engineering and Aerospace Engineering

Know more

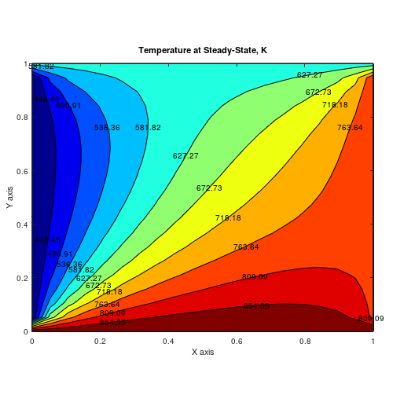

In this project you will solve the steady and unsteady 2D heat conduction equations. You will implement explicit and implicit approaches for the unsteady case and learn the differences between them. You will also learn how to implement iterative solvers like Jacobi, Gauss-Seidel and SOR for solving implicit equations.
