Flow over the FSAE racing car

In this project, you will be setting up the cases for the FSAE racing car in Converge CFD software and then simulating them to analyse the drag force and the down force experienced by each component of the FSAE car.

  • Mechanical Engineering
  • Automotive Engineering
  • Materials Engineering
  • Aerospace Engineering
  • Aeronautical Engineering

duration
Duration :

1 month

projectfees
Project Fees :

INR 30,000

Benefits of this Project

In this project, you will be setting up the cases for the FSAE racing car in Converge CFD software and then simulating them to analyse the drag force and the down force experienced by each component of the FSAE car.

What will you do in this project?

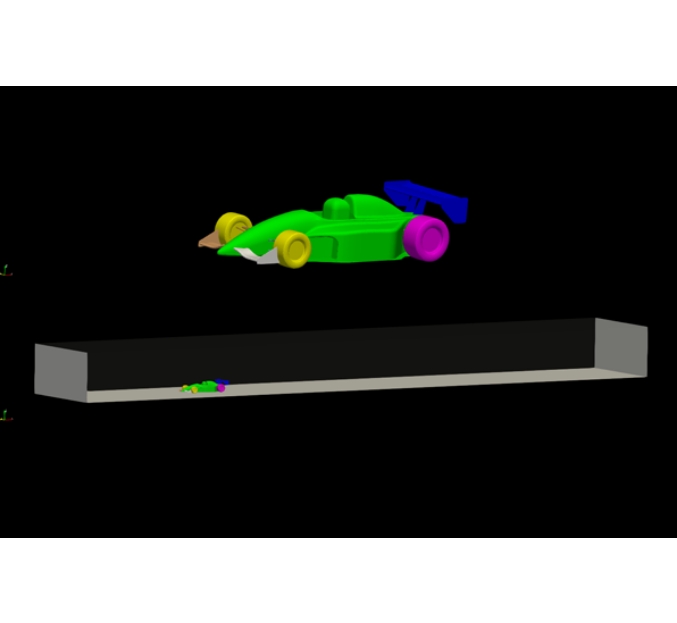

Step 1 - Geometry cleanup and wind tunnel creation in Converge Studio

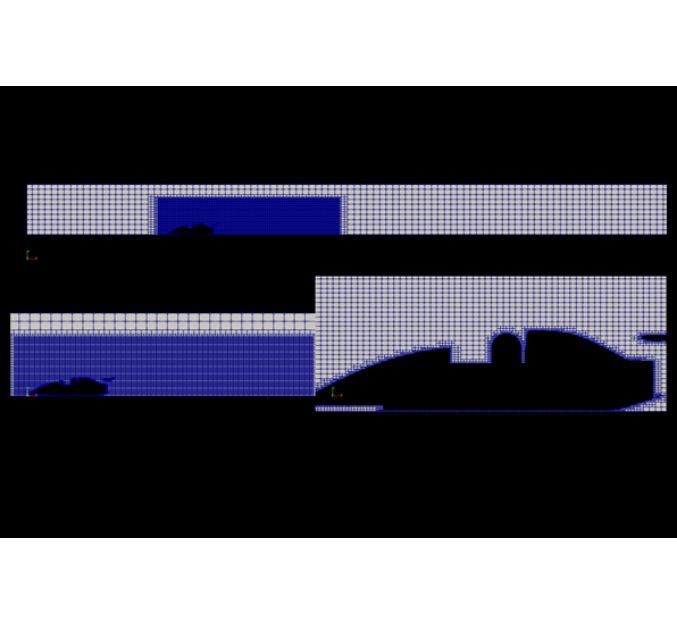

Step 2 - Mesh generation with volume refinement and boundary layer generation

Step 3 - Apply Boundary Conditions and Run the Simulation

Calculations and Analysis

In this project, you will work on a FSAE racing car and run the simulation. You will do the following in this project,

  • Surface cleanup and creating a virtual wind tunnel
  • Calculate the 1st cell height near the wall using Y+ calculator
  • Setup and run case using Converge CFD software

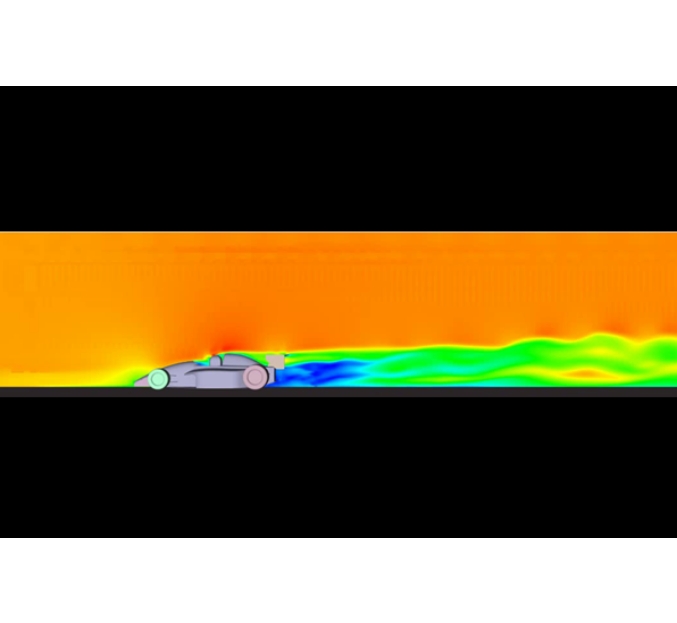

  • Line plotting and visualizing the results in PARAVIEW.
  • Analyzing drag and down force on each component of the FSAE car
